40m 60m 100m laser distance measure module

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: JRT

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

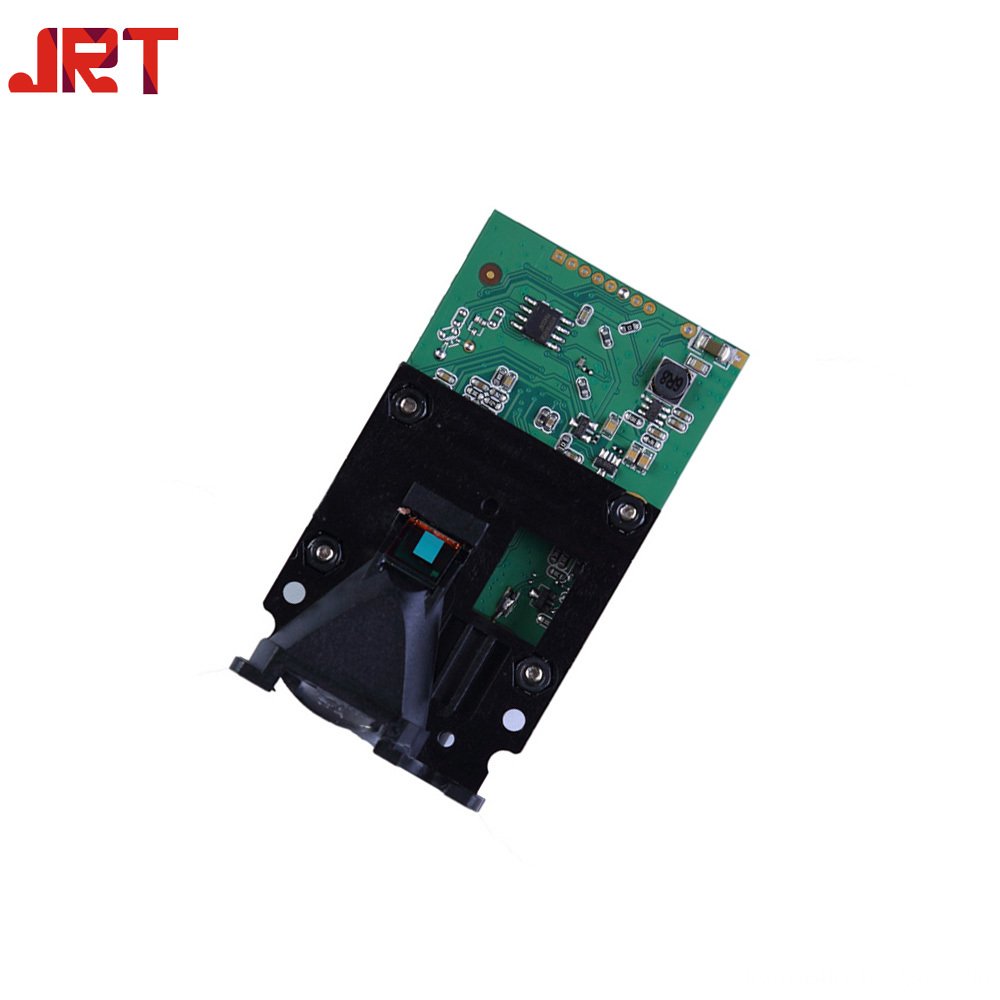

40/60/80/100m laser distance measure module


 Product Description


The Laser Distance Meter Modules offer outstanding technical characteristics combined with an excellent price performance-ratio for the integration of length and/or position measurement systems, especially in the fields of industrial and security applications.This laser measure module is particularly light weight, and provide fast and accurate distance measurements. The measurement range of this laser distance module is 3 to 150m with an measurement accuracy of +/-3mm. The special processing electronics enable the Laser Rangefinder a maximum range capability within eye-safety class II.



Application

1.Industrial automation

2. Security technology

3.outdoor activities.


Technical Specifications:


Accuracy: ±3 mm


Measuring Unit: meter/inch/feet

Measuring Range (without Reflection): 3cm~150m

Measuring Time:0.1~3 seconds

Laser Class:Class II

Laser Type: 635nm, <1mW

Size: 75x18x40mm

Weight: About 21g

Voltage; DC2.5~3V

Operating Temperature:0-40 ℃ (32-104 ℉ )

Storage Temperature: -25~60 ℃  (-13~140 ℉)


Note: 1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃

4. can be customized.


Certificate


Our 40/60/80/100m Laser Distance Measure Module are CE,ROHS,FCC approved.




About Packing

The packing box can be customized when the order is big, or we can use neutral packing like the following.

About Delivery Time

After we received your payment, normally it will arrange to ship to you in 3 working days if we have stock, otherwise we will let you know in time.
