Mobile Phones Laser Distance Sensor with Bluetooth

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: M703A

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description


Mobile Phones Laser Distance Sensor with Bluetooth

JRT 703A laser range sensor is a high precision sensor that can measure up to 40m. If bluetooth protocal laser distance module, you can use for comunication to you mobile device.

Why Us


Chengdu JRT Meter is the factory of laser measure modules sensors more than 16 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

703A 40m Laser Range Bluetooth Distance Sensor


Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B/707C
Accuracy: ±1 mm ±3 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-4s 0.3-4s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 72*40*18mm
Weight: About 10g About 21g
Voltage: DC2.0~3.3V DC2.0~3.3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°

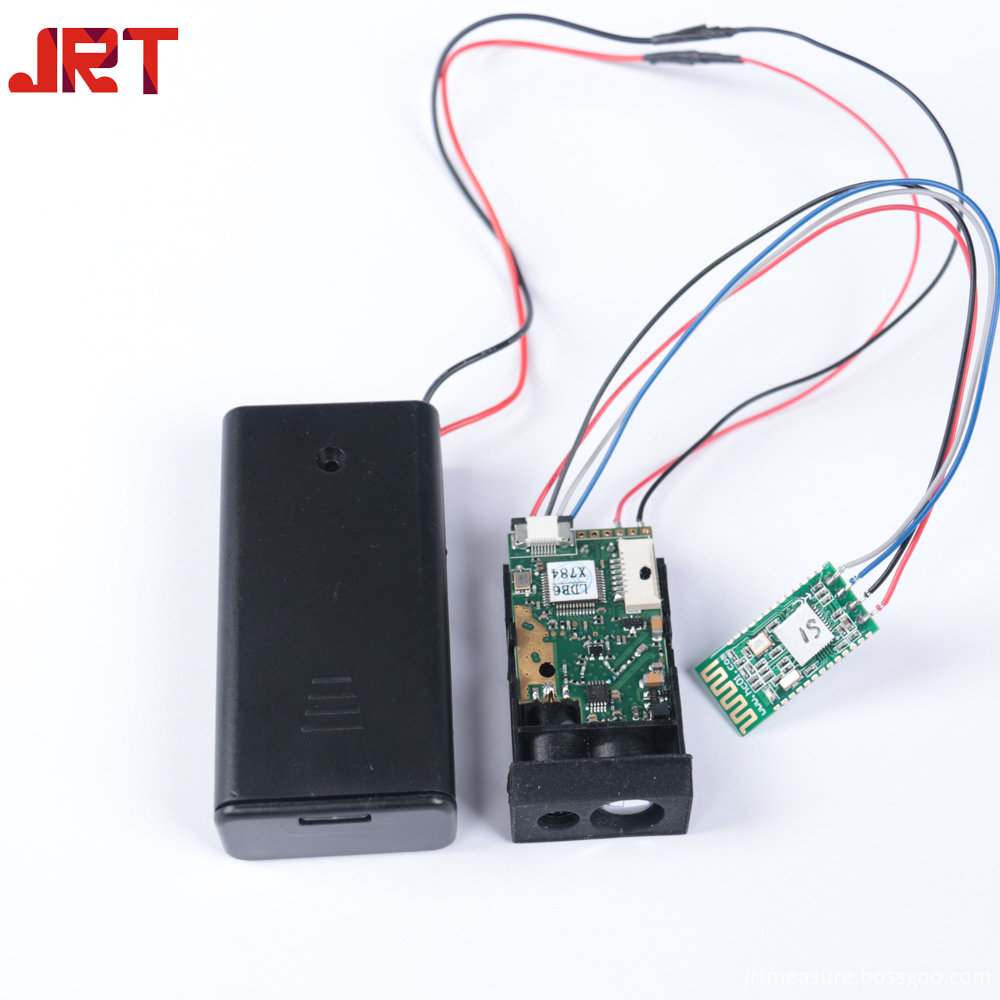

Pictures: 703A 40m distance sensor
B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
