40m Chengdu JRT Meter laser distance sensor rs232

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: MRS232

Baud Rates: 19200bps

Operating Temperature: 0-40℃

Measuring Unit: Meter/inch/feet

Accuracy: 1mm (0.04 Inch)

Laser Class: Class II

Packaging: Neutral Packing

More Functions: Can Be Customized

Range: 0.03~40m

Size: 45x25x12mm

Frequency: 8hz

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

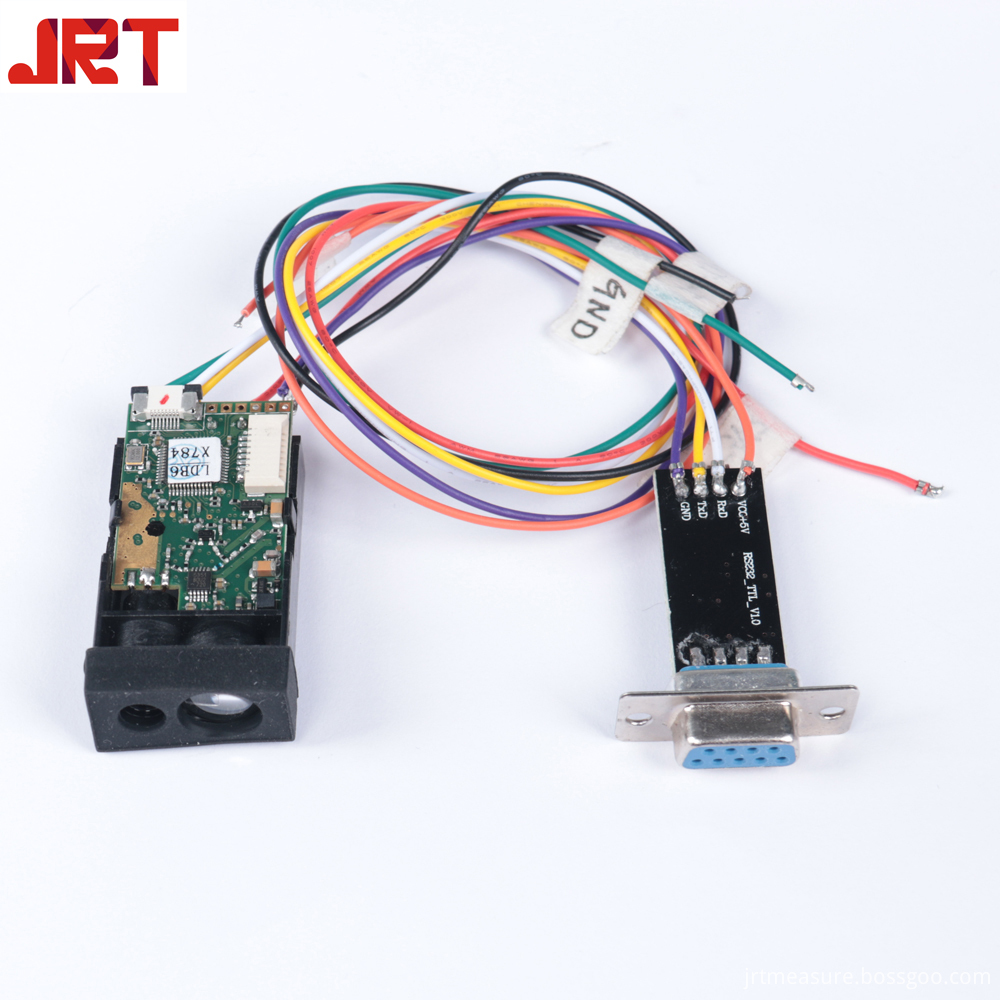

40m Chengdu JRT Meter laser distance sensor rs232

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.


Technical Specifications:

Accuracy

±1 mm (0.04 inch)

Measuring Unit

meter/inch/feet

Measuring Range (without Reflection)

3cm~40m

Measuring Time

0.1~3 seconds

Laser Class

Class II

Laser Type

635nm, <1mW

Size

45x25x12mm

Weight

About 10g

Voltage

DC2.0~3V

Operating Temperature

0-40  (32-104  )

Storage Temperature

-25~60   (-13~140 )

Note: 1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.


Applications:

40m Chengdu Jrt Meter Laser Distance Sensor Rs232

Why Choose Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 200m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

5.     Materials. We use the high performance price ratio components to guarantee the high quality along with a low price.

6.     Service. All goods will be inspected and tested before shipment and have one year guarantee and a life-time after sales service. Thirdly, customers` satisfaction is the most important thing to us. If you have any problems or questions, please contact us by Trademanager, email, WhatsApp, Skype, telephone. You will get your respond within 12 hours on working days, 24 hours on holidays.

7.     Size. We are keeping research on size of our laser distance module, the smallest size is: 45*25*12mm, 10g for now. We are R&D a new module the size is as small as a pen.
