B707C 100m Long Range Laser Sensor

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: B707C

place of origin: China

principle: Optical Sensor

Output: Digital Sensor

Amplifier type: Standard, Optical

jack: Digital

technology: Optical

application: Industrial Automation

Range: 0.03~100m

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

B707C 100m Long Range Laser Sensor

Descriptions:

B707C 100m Long Range Laser Sensor also called, B604B, B605B, can be customized 150m Laser Range Sensor. Our laser distance sensors are mainly two types: laser distance meter module, and industrial laser distance sensorJRT meter's 100m laser rangefinder sensors support single measurement and continuous measurement function.

Welcome to cooperate with JRT, you will be not only getting the guide for your measurement solution, but also the test instruction help.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

B707C 100m Long Range Laser Sensor



Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B
Accuracy: ±3mm ±3 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-3s 0.3-3s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 75*40*18mm
Weight: About 10g About 21g
Voltage: DC2.5~3V DC2.5~3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°
Pictures: 703A 40m distance sensor

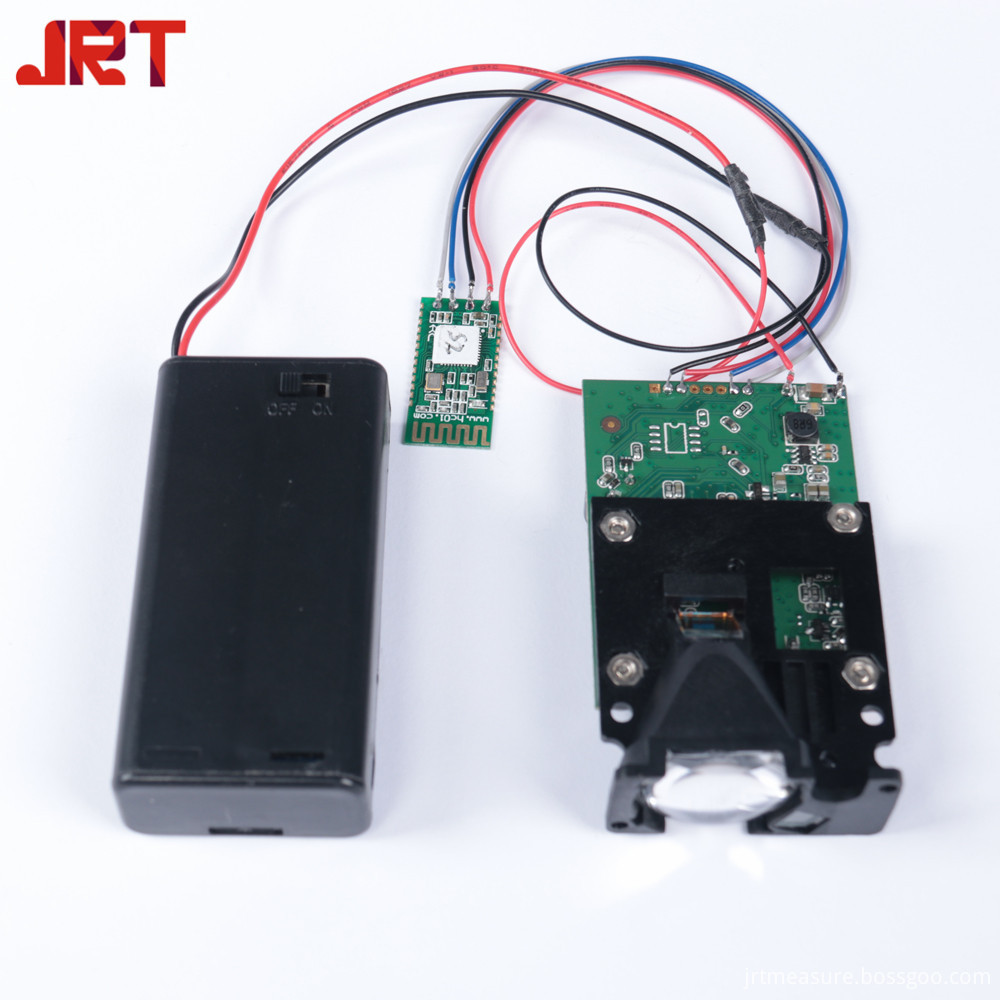

B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize


Chengdu JRT Main Ranging Modules: laser distance meter module, industrial laser distance sensor, mini TOF ranging sensor.
