JRT 2018 Laser Rangefnder 30m Tape Measure

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: LRF30

Baud Rates: 19200bps

Operating Temperature: 0-40℃

Measuring Unit: Meter/inch/feet

Accuracy: 1mm (0.04 Inch)

Frequency: 10hz

Laser Class: Class II

Packaging: Neutral Packing

More Functions: Can Be Customized

Range: 0.03~30m

Size: 72x40x18mm

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

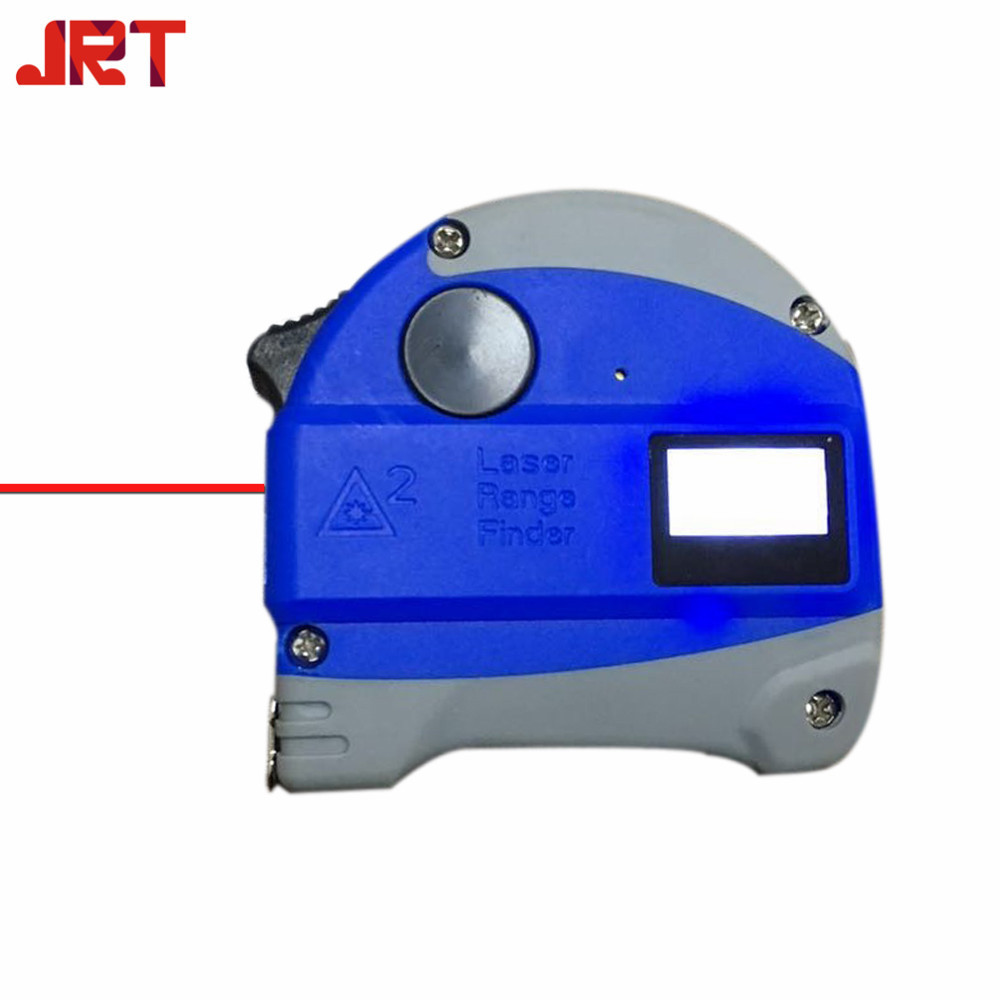

JRT 2018 Laser Rangefnder 30m Tape Measure

A laser rangefinder is a laser measuring tool which uses a laser beam to measure the distance to an object. This 30m laser tape measure is integrated two functions in one tool: 5m tape + 30m laser measure with LCD. The lithium battery is really a good idea for the shipping. The laser tape measure is very convenient of rechargable function.



Why Us


Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

JRT 2018 laser rangefnder 30m tape measure with lithium battery



Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B
Accuracy: ±1 mm ±1 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-3s 0.3-3s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 75*40*18mm
Weight: About 10g About 21g
Voltage: DC2.5~3V DC2.5~3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°
Pictures: 703A 40m distance sensor
B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
