JRT 604B 100m Laser Distance Sensor Module

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: JRT

Baud Rates: 19200bps

Operating Temperature: 0-40℃

Measuring Unit: Meter/inch/feet

Accuracy: 1mm (0.04 Inch)

Frequency: 10hz

Laser Class: Class II

Packaging: Neutral Packing

More Functions: Can Be Customized

Range: 0.03~150m

Size: 75x18x40mm

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

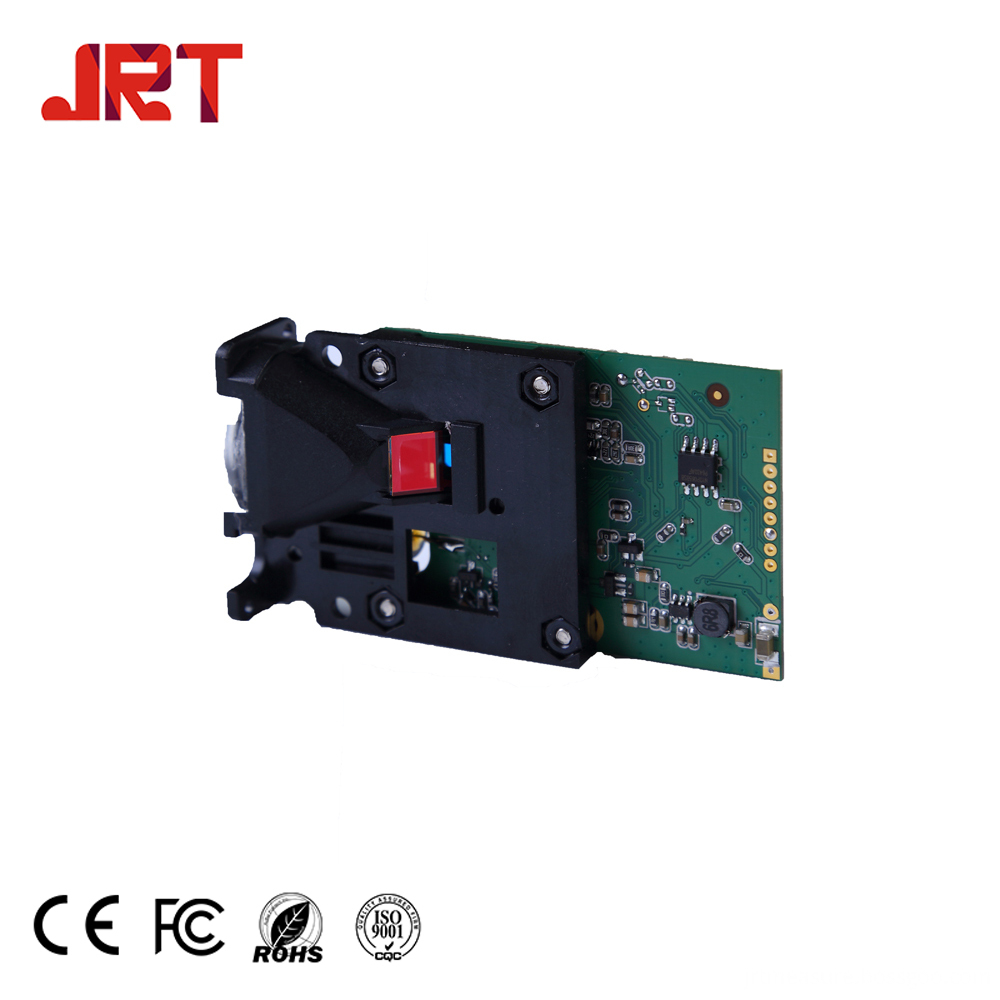

JRT 604B 100m Laser Distance Sensor Module

JRT LRB604B 100m laser distance sensor module is the first vesion we have with 1mm accuracy, widely used in crane monitoring, railway system, warehouse safety and so on. 604B laser measurement sensor has very good performance, and can be customized to work -10~50 degrees.


Technical Specifications:


Accuracy: ±1 mm (0.04 inch)


Measuring Unit: meter/inch/feet

Measuring Range (without Reflection): 3cm~150m

Measuring Time:0.1~3 seconds

Laser Class:Class II

Laser Type: 635nm, <1mW

Size: 75x18x40mm

Weight: About 21g

Voltage; DC2.5~3V

Operating Temperature:0-40 ℃ (32-104 ℉ )

Storage Temperature: -25~60 ℃  (-13~140 ℉)


Note: 1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.
