Model No.: 2M703A194
703A USB precision distance sensor 40m Serial Laser Distance Transducer Frequency

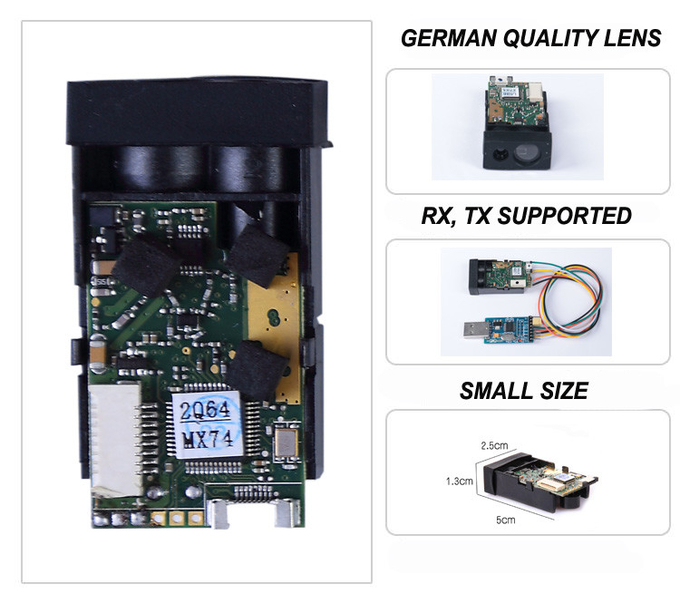

40m Serial Laser Distance Transducer, also called 703A distance sensor with 8hz high frequency. This Laser Distance Transducer with small size 45*25*12mm, can measure 40m long distance. JRT Laser Distance Transducer is a precision distance sensor, supporting serial data output, usb, rs232, you can choose according to your application.
Industrial Laser Distance Transducer Feature:
1. Good for Industrial Application Measurement System
2. Support single measurement/continous measurement
3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional
Specifications of Industrial Laser Distance Transducer :
|Product Name||Laser Distance Transducer|
|Place of Origin||China|
|Accuracy||±1 mm (0.04 inch)|
|Measuring Range (without Reflection)||0.03-50m|
|Measuring Time||0.125~4 seconds|
|Laser Class||Class II|
|Laser Type||635nm, <1mW|
|Size||45*25*12mm (±1 mm)|
|Operating Temperature||0-40 ℃ (32-104 ℉ )|
|Storage Temperature||-25~60 ℃ (-13~140 ℉)|
1.Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.
2.Under strong light or bad diffuse reflectance of target, please use a reflector.
3.60m can be customized.
4.Voltage can be changed by power converter LDO
5.Frequency would be affected by environment.
6.Operating temperature -10 ℃~50 ℃ can be customized.
7.Analog can be customized.
High accuracy+-1mm without reflection. World's advanced single transmitting single receiving technology of making laser module, which greatly reduced cost and power consumption.
Smallest size in the world, Strong range finding ability and industrial stability.
15 years R&D Experiences
We are manufacturer ,accepting OEM & ODM and helping customers to explore different secondary solution, providing continuous technical support and 12 hours response after-sales service for users.
3,000,000 pieces per year
We sold more than 1 million pieces in 2017, about 2 million pieces in 2018, it must be exceed this quantity next year. Thanks to the introduction of new automatic machines, our production capacity is 2 million now.
Founded in 2004, Chengdu JRT Meter Technology Co.,Ltd. is an enterprise specializing in the production and development of laser distance module industry and trade. It is a manufacturer possess of the world's advanced laser technology single transmit and single receive.
JRT insist on developing and producing laser distance modules with better quality, smaller size, but more favorable prices.We can do OEM /ODM designs and customize product functions as customer required.
Three production line: laser distance meter module;Industrial laser distance sensor; laser range finder.
Q1: What`s the delivery time after an order placed for this sample Laser Distance Sensor?
A1: Our standard delivery is 3 days if we have stock, otherwise we will let you know in time. Usually we can manufacture 10,000pcs of laser distance modules a day and 2,000pcs LDM.
Q2: What`s the MOQ?
A2: Regular products only 1pcs, OEM/ODM products need 1000pcs at least.
Q3: What`s the warranty?
A3: All our products have one year guarantee and a life-time after sales service.
Q4: Can I have a sample for testing?
A4: Yes. We do not offer free samples, but will reimburse the buyer once an order is confirmed.
a. Lifetime warranty for software
b. 1 year warranty
c. Lifetime Technical support
|Minimum Order Quantity:||1pcs|
|Payment Terms:||T/T, Western Union, Paypal|
|Supply Ability:||10,000pcs per day|
|Delivery Time:||1~3 working days after received your payment|
|Packaging Details:||Packed in Neutro-packing|
JRT Laser Distance Sensor Module already widely used in many industrial area, like robot, warehouse logistics, safety system, Railway Monitoring, Agricultural Automation, construction, Industrial Automation, Intelligent Transportation, Truck Height,Drone, Archery, Engineering Survey, Golf, Interior Finish, Sports, Engineer,3D laser printer, crane, radar, lidar etc.
1. Leading laser technology
2. Wholesale price
3. We can do OEM designs and customize product functions as customer required.
4. Support customize laser distance measure solution for you.
About Module's Model:
|Product Name||JRT Industrial Laser Distance Sensor|
|Old Version Model No.||M512A/M701A/M703A|
|Latest Version Model No.||M88B|
|Data Interface Optional||Serial port/USB/RS232/RS485/Bluetooth|
