JRT Meter 40m 1mm accuracy laser distance module

Payment Type: L/C,T/T,Paypal,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.:  703A

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

JRT Meter 40m 1mm accuracy laser distance module

2017 JRT 40m small laser distance module with 1mm accuracy is a new version for JRT small size laser distance meter modules whose old version were: 512A, 701A and 702A. 703A laser distance sensor has better performance.

This Following May Help You

Customer to Emma Wang:
Hi Emma, thank you for your quick and kind respons!
We are very happy with the service!

Technical Specifications:

Accuracy

±1 mm (0.04 inch)

Measuring Unit

meter

Measuring Range (without Reflection)

3cm~40m

Measuring Time

0.1~3 seconds

Laser Class

Class II

Laser Type

620-690nm, <1mW

Size

45x25x12mm

Weight

About 10g

Voltage

DC2.0~3V

Operating Temperature

0-40  (32-104  )

Storage Temperature

-25~60   (-13~140 )

Note: 1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error:  ±3 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~40 ℃ can be customized.


Applications:

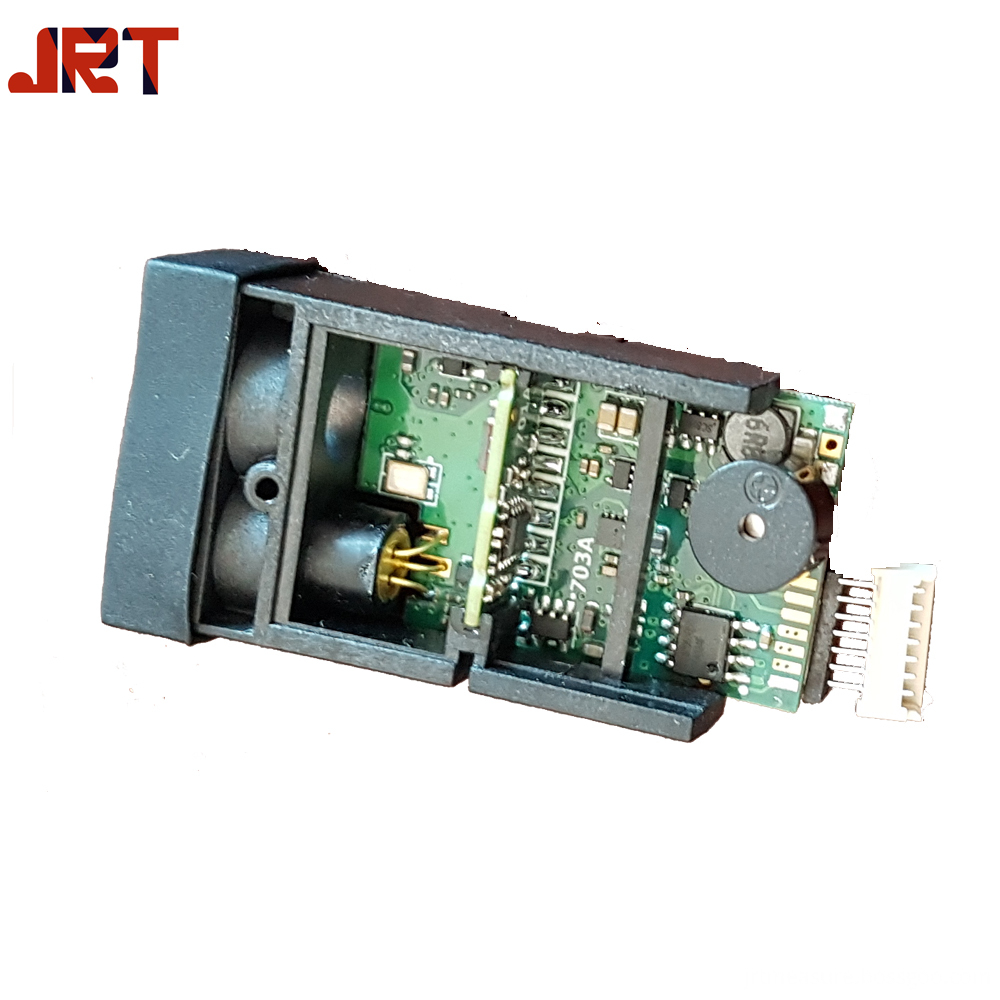

703A internal movement of laser distance meter

Why Choose Us

1.     Quality. Thanks to our strong R&D team, JRT Laser distance meter and modules have been keeping the pace with the measuring technical evolving and pioneering the industry with the unique and patented laser phase measuring solution. From the view of Accuracy, Range, Resolution, Stability, Size and Power Consumption, JRT is undoubtedly one of the best in the line.

2.    Schemes of single transmit and single receive. This is one of our patents. We are the only one in the market have this technology. It helps us to reduce our cost and power consumption a lot.

3.     Accuracy and Range. Our typical accuracy is ±1.0mm, and range from 40m to 200m.

4.     Stability. Our laser distance meter and distance module have a high stability, especially for industry use.

5.     Materials. We use the high performance price ratio components to guarantee the high quality along with a low price.

6.     Service. All goods will be inspected and tested before shipment and have one year guarantee and a life-time after sales service. Thirdly, customers` satisfaction is the most important thing to us. If you have any problems or questions, please contact us by Trademanager, email, WhatsApp, Skype, telephone. You will get your respond within 12 hours on working days, 24 hours on holidays.

7.     Size. We are keeping research on size of our laser distance module, the smallest size is: 45*25*12mm, 10g for now. We are R&D a new module the size is as small as a pen.


Chengdu JRT Main Ranging Modules: laser distance meter module, industrial laser distance sensor, mini TOF ranging sensor.
