| Min. Order: | 1 Piece/Pieces |
|---|
Basic Info
Model No.: U81B
place of origin: China
principle: Optical Sensor
Output: Digital Sensor
jack: Digital
technology: Optical
Baud Rates: 19200bps
Measuring Unit: Meter/inch/feet
Laser Class: Class II
Packaging: Neutral Packing
More Functions: Can Be Customized
Operating Temperature: 0-40℃
Accuracy: 1mm (0.04 Inch)
Range: 0.03~20m
Frequency: 3hz
Additional Info
Packaging: neutro-packing
Productivity: 10000pcs/day
Brand: JRT
Transportation: Air,Express
Place of Origin: Chengdu
Supply Ability: 20000pcs/day
Certificate: CE RoHS
HS Code: 9015100000
Port: Chengdu,Shenzhen
Product Description

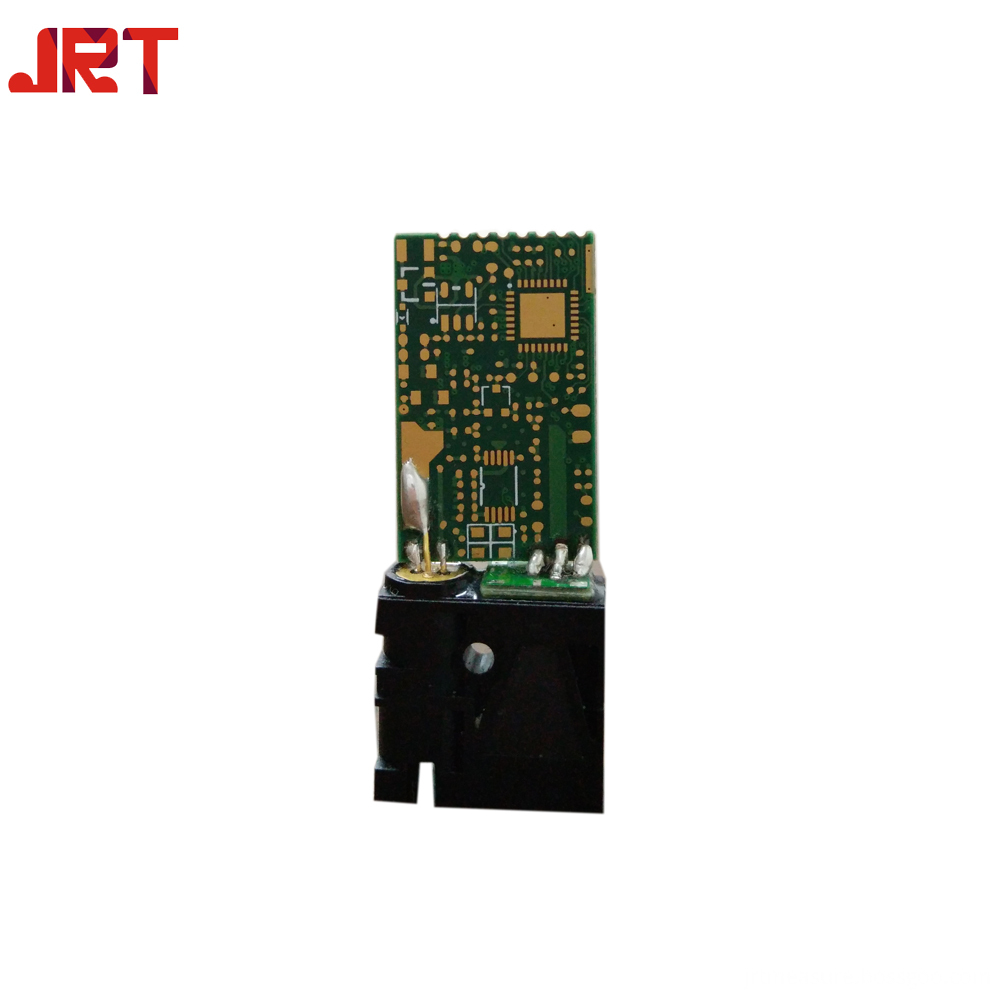

JRT Mini Laser Range Measurement Sensor is developed for non-contact distance measurement at short range from 3cm to 20m. U81 New laser distance sensor is a result of JRT R&D team a year hard working. This laser distance module is very small, 41*17*7mm, the 7mm thickness make it available to put in a phone. JRT Meter is keeping hard working to provide our users for more accurate, cheap and better quality laser distance sensor. U81 laser distance measurement sensor also support broadcasting network.
Why Us
JRT Meter is a professional manufacturer of laser distance modules, with 16 years R&D experiences in this line. We also support customization.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.
Technical Datasheet
| Middle Module | Big Module | |
| Product Model: | U81B | 604B/605B/707C |
| Accuracy: | ±1 mm | ±1 mm |
| Measuring Unit: | mm/in/ft | mm/in/ft |
| Measuring Range: | 0.03-20m | 0.03-40m/60m/80m/100m/120m/150m |
| Measuring Time: | 0.3-3s | 0.3-3s |
| Laser Class: | Class Ⅱ | Class Ⅱ |
| Laser Type: | 620-690nm,<1mw | 620-690nm,<1mw |

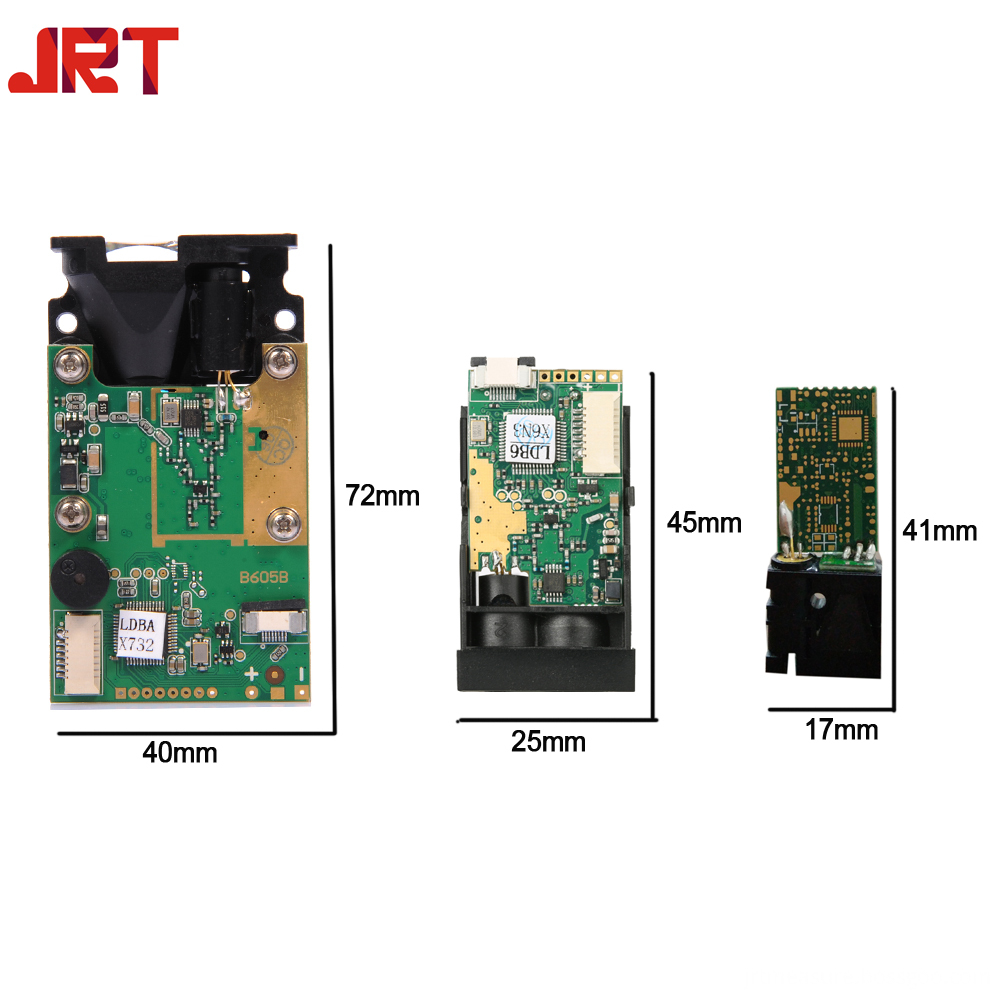

| Size: | 41*17*7mm | 72*40*18mm |
| Weight: | About 4g | About 21g |
| Voltage: | DC2.5~3V | DC2.5~3V |
| Operating Temperature: | 0 C°~40 C° | 0 C°~40 C° |
| Storage Temperature: | -25 C°~60 C° | -25 C°~60 C° |
| Pictures: |
 |
 |
Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board
3. Operating temperature -10 ℃~50 ℃ can be customize
