OEM Device Laser Range Measuring of Mini Module

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: U81

Baud Rates: 19200bps

Operating Temperature: 0-40℃

Measuring Unit: Meter/inch/feet

Accuracy: 1mm (0.04 Inch)

Frequency: 10hz

Laser Class: Class II

Packaging: Neutral Packing

More Functions: Can Be Customized

Range: 0.03~30m

Size: 72x40x18mm

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

OEM Device Laser Range Measuring of Mini Module

OEM Device Laser Range Measuring of Mini Module is a magical design ,that integrated two functions-tape measure and laser measure in one tool .The JRT laser range measure can measure faster, easier, and more effectively!It can measure long distance up to 150m with accurate results+-1mm, equipped with a precise,easy- to-read digital LED display.Supporting single and continuous measure mode. Supporting industrial control device using our Mini Module or bigger size module.



Why Chose  Us

Chengdu JRT Meter is the factory of laser measure modules sensors more than 10 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

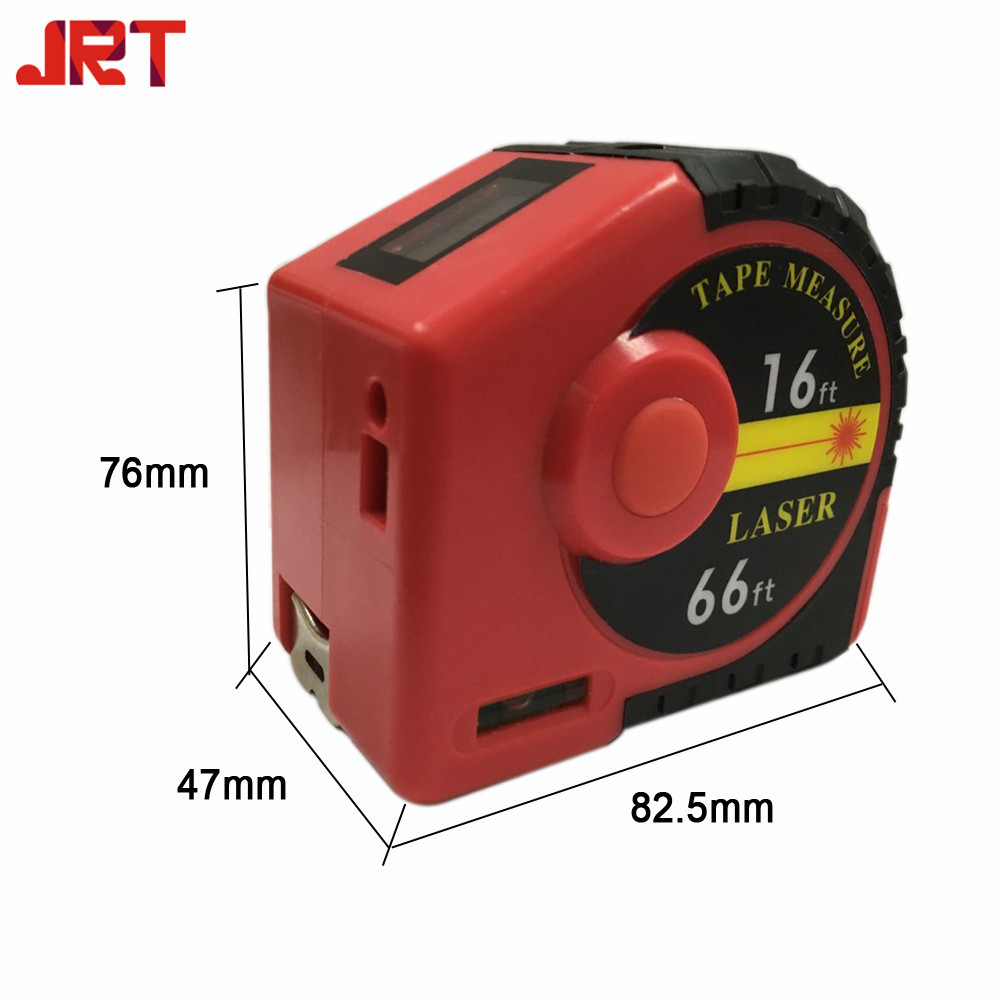

2 In 1 Laser Tape Measure Digital Distance Measuring Device



Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B
Accuracy: ±1 mm ±1 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-3s 0.3-3s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 75*40*18mm
Weight: About 10g About 21g
Voltage: DC2.5~3V DC2.5~3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°
Pictures: 703A 40m distance sensor
B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize

Application




OEM Device Laser Range Measuring of Mini Module

 is a magical design ,that integrated two functions-tape measure and laser measure in one tool and can be operated by one hand easily.  Why Us
