40m Range Finder Module Accurate Laser Ruler

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: E703A-20210727g

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 84314910

Port: Chengdu,Shenzhen

Product Description

40m Range Finder Module Accurate Laser Ruler

The accurate 40m range finder module we also called 703A laser distance sensor, which is designed for industrial application. Particular the usb laser rangefinder sensor, you can directly connetct to your computer and test. Very convienent, right? Welcome to use our laser distance modules to your project.


Why Us


Chengdu JRT Meter is the factory of laser measure modules sensors more than 14 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

703a 40m Range Finder Module Accurate Laser Ruler


Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B/707C
Accuracy: ±1 mm ±1 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-3s 0.3-3s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 75*40*18mm
Weight: About 10g About 21g
Voltage: DC2.0~3.3V DC2.0~3.3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°

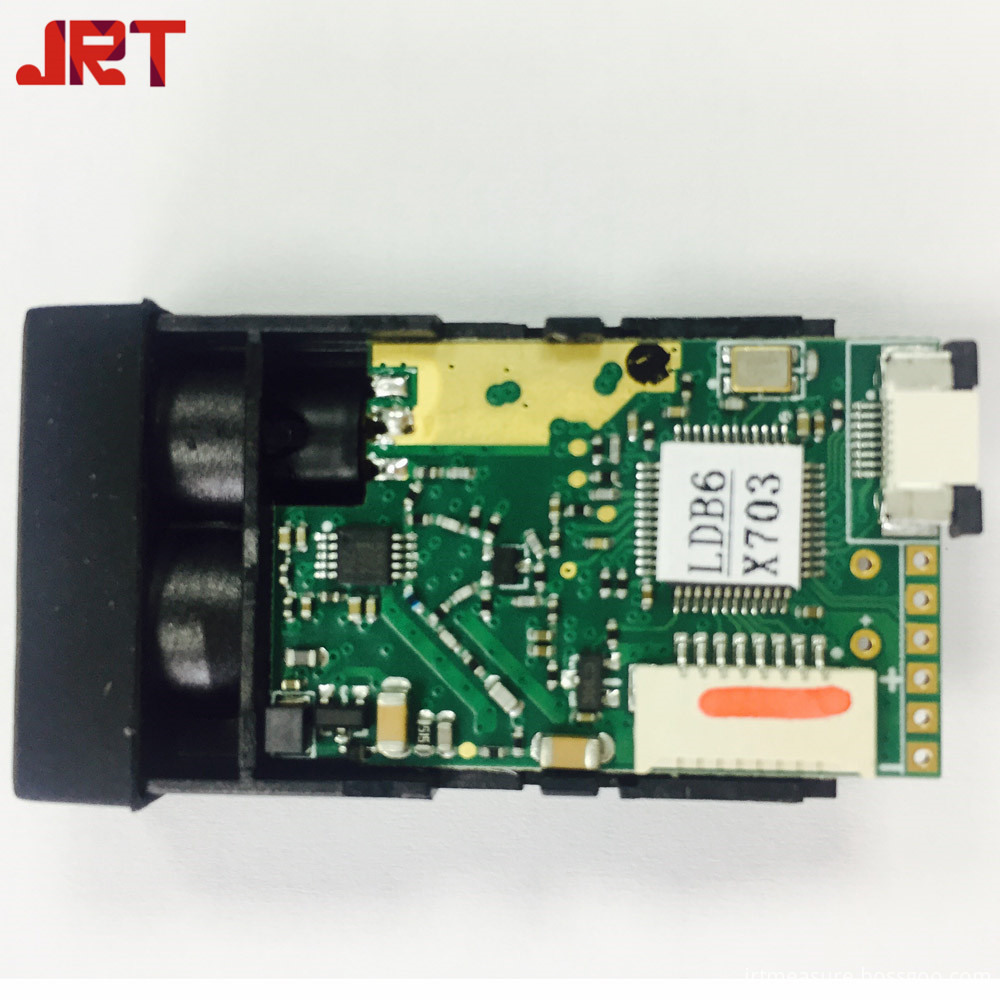

Pictures: 703A 40m distance sensor
B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
