JRT 512A Smart Measuring Module Laser Distance RS232

Payment Type: L/C,T/T,D/P,Paypal,Money Gram,Western Union
Incoterm: FOB
Min. Order: 1 Piece/Pieces
Delivery Time: 3 Days

Basic Info

Model No.: D703A

Baud Rates: 19200bps

Operating Temperature: 0-40℃

Measuring Unit: Meter/inch/feet

Accuracy: 1mm (0.04 Inch)

Laser Class: Class II

Packaging: Neutral Packing

More Functions: Can Be Customized

Range: 0.03~40m

Size: 45x25x12mm

Frequency: 8hz

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 20000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

JRT 512A Smart Measuring Module Laser Distance RS232

JRT 512A Smart Measurement System Smart Measuring Module Laser Distance RS232 40m safety system

JRT Smart Measurement System laser distance module is designed of the world`s leading technology - single transmit and single receive. Indutrial measurement system smart laser range finder module support single measurement continuous measurement, you can set according to your application, like robot, warehouse logistics, safety system etc. monitoring measurement system.


Why Us


Chengdu JRT Meter is the factory of laser measure modules sensors more than 14 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

703A Smart measuring module laser distance rs232


Technical Datasheet

  Middle Module Big Module
Product Model: 703A 604B/605B/707C
Accuracy: ±1 mm ±1 mm
Measuring Unit: mm/in/ft mm/in/ft
Measuring Range: 0.03-40m/50m/60m 0.03-40m/60m/80m/100m/120m/150m
Measuring Time: 0.3-3s 0.3-3s
Laser Class: Class Ⅱ Class Ⅱ
Laser Type:  635nm,<1mw 635nm,<1mw
Size:  45*25*12mm 75*40*18mm
Weight: About 10g About 21g
Voltage: DC2.0~3.3V DC2.0~3.3V
Operating Temperature: 0 C°~40 C° 0 C°~40 C°
Storage Temperature: -25 C°~60 C° -25 C°~60 C°

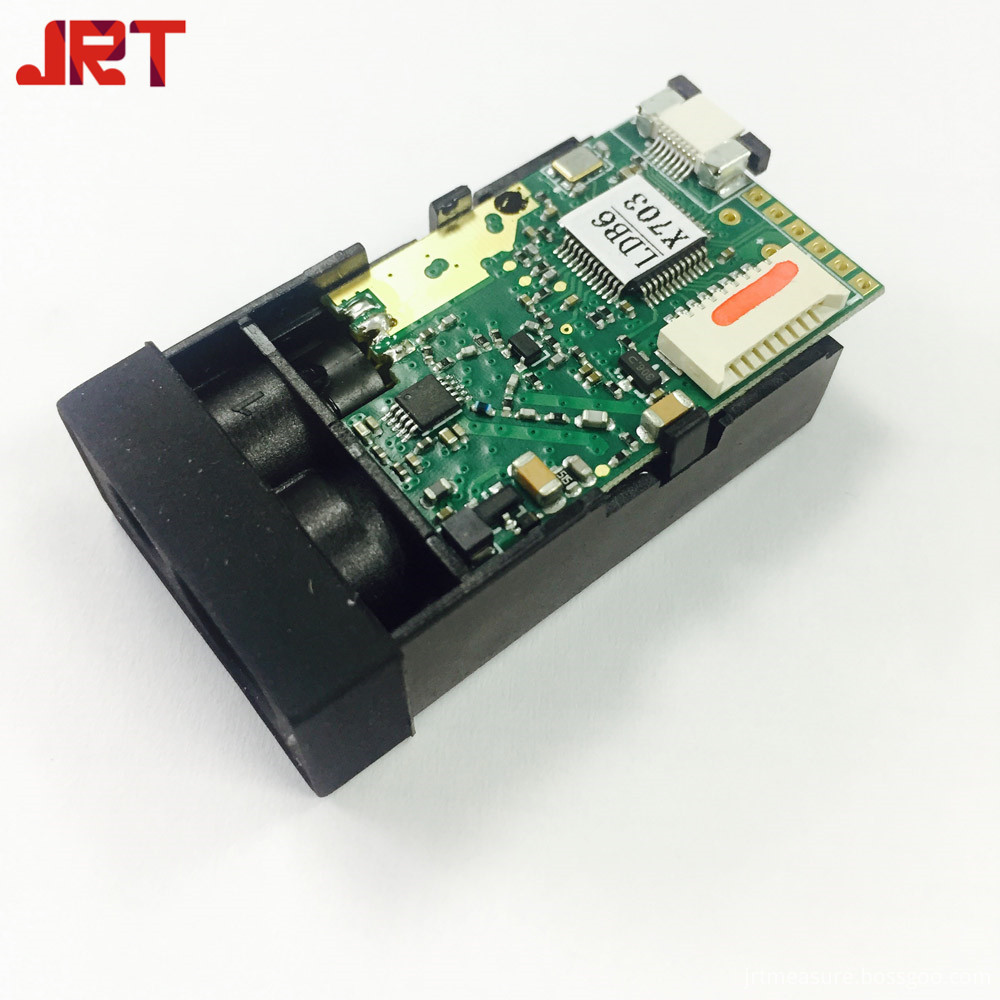

Pictures: 703A 40m distance sensor
B605B distance sensor



Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
