RS232 Optical Lazer distance sensor

Basic Info

Model No.: 703A

Additional Info

Packaging: neutro-packing

Productivity: 10000pcs/day

Brand: JRT

Transportation: Air

Place of Origin: Chengdu

Supply Ability: 10000pcs/day

Certificate: CE RoHS

HS Code: 9015100000

Port: Chengdu,Shenzhen

Product Description

RS232 Optical Lazer distance sensor

JRT meter's 703A laser range sensor has RXTX/uart/serial port/serial output, you can use our laser distance module to connect your Arduino. Good news: we designed a black case for the 703A laser rangefinder sensors, it's a great idea to install to your device.

Why Us

Chengdu JRT Meter is the factory of laser measure modules sensors, which has a history of 16 years. Support OEM your own laser measuring tools.
Welcome to tell us your applicaiton, we are glad to help.
Industial Applicaiton:
1. Distance optional: 40m, 60m, 100m, 120m, 150m
2. Interface optional: serial port, USB, RS232, RS485, Bluetooth etc
3. Operating temperature: -10 ºC~50 ºC can be customized.

Technical Specifications of Laser Distance MeterSensor:
Range: 0.03 meters - 40 meters
Invisible measuring: 620nm ~ 690nm
Measuring accuracy: +-1 mm
Measuring frequency: Up to 3 Hz
Laser type: Class 2, red
Interface options: Serial/usb/rs232/rs485/bluetooth
Size: 45*25*12mm
Working temperature: 0 ~ 40 degree
Storage temperature: -25 ~ 60 degree

Pictures:

Diagram for the Laser Distance Sensor

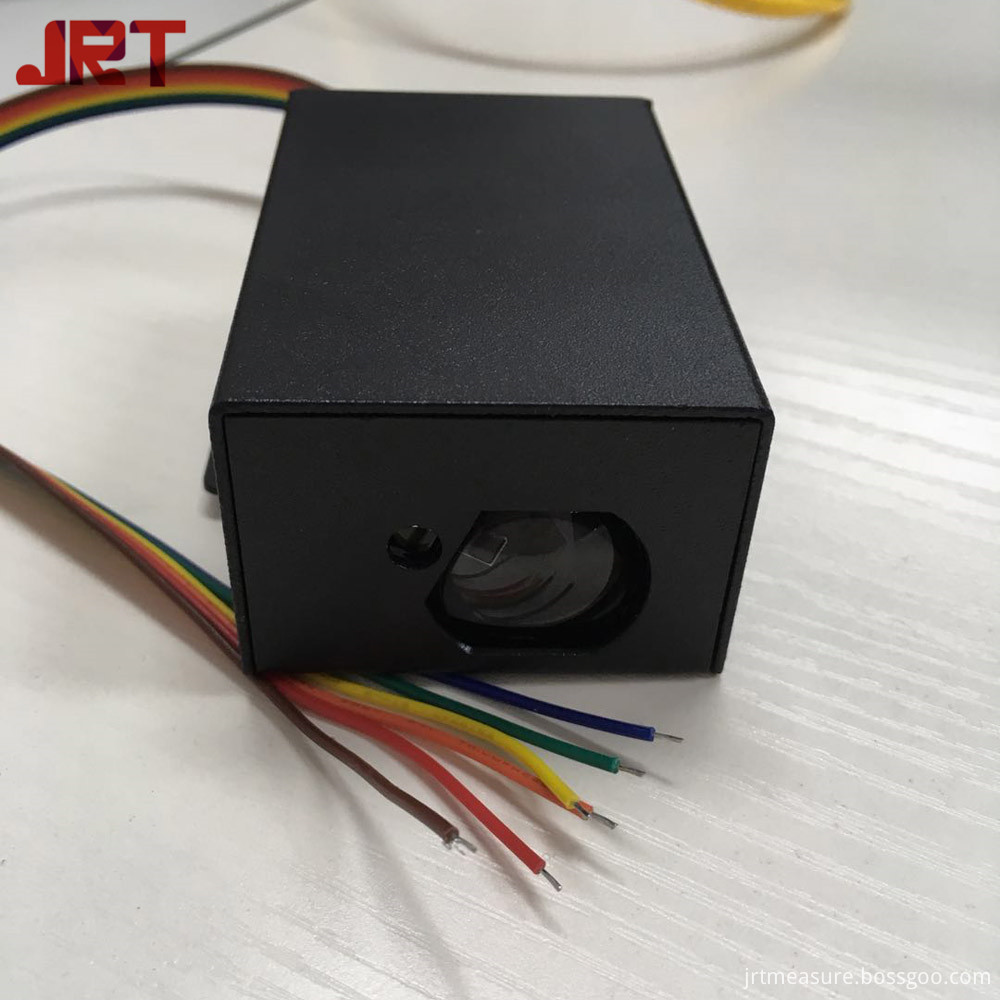

The black case is a new gesign, easy to install, you can use for your laser measure project.

Note:
1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±3 mm+40PPM.
2. Under strong light or bad diffuse reflectance of target, please use a reflection board

3. Operating temperature -10 ℃~50 ℃ can be customize
